KI696

目录号: GC31321纯度: >99.00%
KI696是一种干扰Keap1/NRF2相互作用的高亲和力探针。

KI696
Cas No.: 1799974-70-1
规格价格库存数量操作
1mg¥1,710.00现货
1
5mg¥2,250.00现货
1
10mg¥3,600.00现货
1
10mM (in 1mL DMSO)¥2,725.00现货
1

文献被引

本产品暂无引用记录;以下为 GlpBio 产品在 Nature / Cell / Science 等顶刊的客户引用样例
  • Nature cover
    Nature
    641, 529–536 (2025)
  • Nature cover
    Nature
    628, 630–638 (2024)
  • Nature cover
    Nature
    632, 686–694 (2024)
  • Nature cover
    Nature
    618, 1017–1023 (2023)
  • Nature cover
    Nature
    610, 366–372 (2022)
  • Cell cover
    Cell
    187(9):2288-2304 (2024)
  • Cell cover
    Cell
    183(7):1867-1883 (2020)
  • Science cover
    Science
    388(6745) (2025)
  • Science cover
    Science
    387(6739) (2025)
  • Science cover
    Science
    387(6734) (2025)
  • Cell Research cover
    Cell Research
    35, 97–116 (2025)
  • Cell Research cover
    Cell Research
    34, 683–706 (2024)
  • Cell Research cover
    Cell Research
    33, 273–287 (2023)
  • Cell Research cover
    Cell Research
    33, 546–561 (2023)
  • Cell Research cover
    Cell Research
    33, 904–922 (2023)
  • Cell Research cover
    Cell Research
    31, 1291–1307 (2021)

产品描述 Description

KI696 is a high affinity probe that disrupts the Keap1/NRF2 interaction.

KI696 (compound 7) exhibits very high affinity for the KEAP1 Kelch domain (ITC Kd=1.3 nM with the exception of the organic anion transporting polypeptide 1B1 (OATP1B1) (IC50=2.5 µM), the bile salt export pump BSEP (IC50=4.0 µM), and the phosphodiesterase PDE3A (IC50=10 µM), no significant cross-reactivity is observed. No cytotoxicity is observed towards BEAS-2B cells with KI696 at concentrations up to 10 µM. KI696 increases NRF2 Nuclear Translocation in Normal Human Bronchial Epithelial cells. KI696 increases mRNA expression of the NRF2-dependent genes NQO1 and GCLM in NHBE cells transfected with the non-targeting siRNA, while NRF2 gene silencing significantly decreases compound activity. KI696 increases NQO1 Activity in an NRF2-Dependent Manner. Treatment with tBHP clearly has a detrimental effect on cell health and appearance while pre-treatment of cells with 1 µM KI696 before the exposure to tBHP maintained cell morphology consistent with the DMSO control. KI696 Induces the Expression of NRF2-Regulated Genes in COPD patient-derived bronchial epithelial cells[1].

KI696 induces the expression of each of the Nqo1, Ho-1, Txnrd1, Srxn1, Gsta3, Gclc genes in a dose-dependent manner, with maximum increases over vehicle controls of 37-(Nqo1), 17-(Ho-1), 9-(Txnrd1), 28-(Srxn1), 15-(Gsta3) and 13-fold (Gclc) occurring at the 50 µmol/kg dose. EC50 values are 44.0, 25.7, 42.6, 33.8, 28.4, and 44.1 µmol/kg, respectively, giving an average EC50 value of 36.4±3.4 µmol/kg. KI696 attenuates ozone-Induced pulmonary inflammation. KI696 restores ozone-induced depletion of lung GSH levels. KI696 is administered to rats at 10, 35 and 50 µmol/kg by IV infusion, resulting in steady state compound concentrations in the blood of 407±44 nM, 946±50 nM and 1437±186 nM, respectively, over the 6 hour infusion period. Exposure to ozone 24 hours post-dose produces a significant depletion in lung levels of the anti-oxidant molecule, GSH, which is restored by KI696 in a dose-dependent manner[1].

[1]. Davies TG, et al. Monoacidic Inhibitors of the Kelch-like ECH-Associated Protein 1: Nuclear Factor Erythroid 2-Related Factor 2 (KEAP1:NRF2) Protein-Protein Interaction with High Cell Potency Identified by Fragment-Based Discovery. J Med Chem. 2016 Apr 28;59(8):3991-4006.

实验参考方法 Experimental Reference Method

Kinase experiment:

Inhibition of the Kelch domain-NRF2 interaction is determined using a fluorescence polarisation-based competition assay in a black 384-well microplate. Each well contained 2 nM 5’-TAMRA-NRF2 peptide (AFFAQLQLDEETGEFL) and 7 nM human KEAP1 (residues 321-609) in 50 µL of assay buffer (50 mM Tris-HCl pH 8.0, 100 mM NaCl, 5 mM MgCl2, 2 mM 3-[(3-Cholamidopropyl)dimethylammonio]-1-propanesulfonate (CHAPS), 1 mM DTT, 0.005% BSA, 1% DMSO). After 1 hour at room temperature, fluorescence polarisation (excitation 485 nm/emission 520 nm) is measured using a BMG Pherastar FS plate reader. IC50 values are determined by fitting the data to a four parameter logistic fit[1].

Cell experiment:

BEAS-2B cells are plated in 384 well black clear-bottomed plates and are incubated overnight (37°C, 5% CO2). On day 2, the plates are centrifuged and 50 nL of compound (KI696) or controls are added to the cells for 48 hours. On day 4, the medium is aspirated from the plate and crude cell lysates are made by using 1X lysis buffer with Complete, Mini, EDTA-free Protease Inhibitor. After lysis, the plates are incubated for 20 minutes at room temperature and the MTT cocktail is prepared for measurement of NQO1 activity. The samples are analyzed on an Envision plate reader, reading absorbance at 570 nm for five individual readings with 10 minute intervals. Product formation is measured kinetically and the pEC50 of NQO1 specific activity induction is calculated by plotting the change in absorbance versus log [compound] followed by 4-parameter fitting[1].

Animal experiment:

Rats[1]To examine the effect of KI696 under conditions of oxidative stress, rats are administered KI696 at 35 µmol/kg (the approximate average EC50 value for gene expression) by IV infusion over 6 hours, and after 24 hours are exposed to ozone (1 ppm for 3 hours). Fifteen minutes following the termination of ozone exposure, the numbers of total cells, neutrophils and mononuclear cells in the bronchoalveolar lavage (BAL) fluid are measured[1].

References:

[1]. Davies TG, et al. Monoacidic Inhibitors of the Kelch-like ECH-Associated Protein 1: Nuclear Factor Erythroid 2-Related Factor 2 (KEAP1:NRF2) Protein-Protein Interaction with High Cell Potency Identified by Fragment-Based Discovery. J Med Chem. 2016 Apr 28;59(8):3991-4006.

产品文档 Product Documents

Purity:>99.00%

化学性质Chemical Properties

CAS 号
1799974-70-1

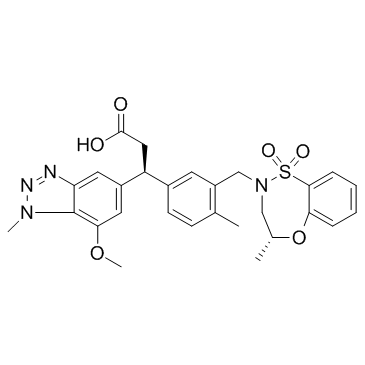

SMILES
COC1=C(N2C)C(N=N2)=CC([C@H](C3=CC(CN(C[C@H]4C)S(=O)(C5=CC=CC=C5O4)=O)=C(C)C=C3)CC(O)=O)=C1
分子式
C28H30N4O6S
分子量
550.63 g/mol
溶解性
DMSO : 125 mg/mL (227.01 mM)
保存条件
Store at -20°C
General tips
请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液;一旦配成溶液,请分装保存,避免反复冻融造成的产品失效。
储备液的保存方式和期限:-80°C 储存时,请在 6 个月内使用,-20°C 储存时,请在 1 个月内使用。
为了提高溶解度,请将管子加热至 37°C,然后在超声波浴中震荡一段时间。
Shipping Condition
评估样品解决方案:配备蓝冰进行发货。所有其他可用尺寸:配备 RT,或根据请求配备蓝冰。
