HBC514

目录号: GC39621纯度: >98.00%
HBC514是一种与Pepper RNA适配体形成紧密复合物后才能发出绿色荧光的非荧光HBC类似物,被广泛用于RNA标记,Ex/Em为485nm/530nm。

HBC514
Cas No.: 2530161-67-0
规格价格库存数量操作
1mg¥1,000.00现货
1
5mg¥3,150.00现货
1
10mg¥5,715.00现货
1
25mg¥10,350.00现货
1
50mg¥16,650.00现货
1

文献被引

本产品暂无引用记录;以下为 GlpBio 产品在 Nature / Cell / Science 等顶刊的客户引用样例
  • Nature cover
    Nature
    641, 529–536 (2025)
  • Nature cover
    Nature
    628, 630–638 (2024)
  • Nature cover
    Nature
    632, 686–694 (2024)
  • Nature cover
    Nature
    618, 1017–1023 (2023)
  • Nature cover
    Nature
    610, 366–372 (2022)
  • Cell cover
    Cell
    187(9):2288-2304 (2024)
  • Cell cover
    Cell
    183(7):1867-1883 (2020)
  • Science cover
    Science
    388(6745) (2025)
  • Science cover
    Science
    387(6739) (2025)
  • Science cover
    Science
    387(6734) (2025)
  • Cell Research cover
    Cell Research
    35, 97–116 (2025)
  • Cell Research cover
    Cell Research
    34, 683–706 (2024)
  • Cell Research cover
    Cell Research
    33, 273–287 (2023)
  • Cell Research cover
    Cell Research
    33, 546–561 (2023)
  • Cell Research cover
    Cell Research
    33, 904–922 (2023)
  • Cell Research cover
    Cell Research
    31, 1291–1307 (2021)

产品描述 Description

HBC514 is a non-fluorescent HBC analog that only emits green fluorescence upon forming a tight complex with the Pepper RNA aptamer, widely used for RNA labeling, with Ex/Em wavelengths of 485nm/530nm[1]. The binding between HBC514 and the Pepper aptamer exhibits high specificity, and the complex demonstrates high signal intensity and exceptional photostability in live cells, making it suitable for live-cell imaging, RNA dynamic tracking, and CRISPR-based biosensing applications[2,3].

References:
[1] CHEN X, ZHANG D, SU N, et al. Visualizing RNA dynamics in live cells with bright and stable fluorescent RNAs[J]. Nature Biotechnology, 2019, 37(11): 1287-1293.
[2] YU Q, REN K, YOU M. Genetically encoded RNA nanodevices for cellular imaging and regulation[J]. Nanoscale, 2021, 13(17): 7988-8003.
[3] YUAN D, HE H, SONG W, et al. Allosteric genetically encoded biosensor for spatiotemporal monitoring of endogenous RNA dynamics in living cells[J]. Proceedings of the National Academy of Sciences, 2025, 122(7): e2409309122.

HBC514是一种与Pepper RNA适配体形成紧密复合物后才能发出绿色荧光的非荧光HBC类似物,被广泛用于RNA标记,Ex/Em为485nm/530nm[1]。HBC514与Pepper适配体的结合具有高特异性,且复合物在活细胞中表现出良好的亮度和稳定性,适用于活细胞成像、RNA动态观察和基于CRISPR的生物感测等领域[2,3]

实验参考方法 Experimental Reference Method

HBC514用于活细胞成像的实验步骤[1]
(1)细胞被质粒转染24h后植入玻璃底激光共聚焦培养皿中,确保细胞融合度约为次日60%。
(2)细胞用1 × PBS洗涤两次,然后用Hoechst 33342染料溶液在37℃染色10min。
(3)去除Hoechst染色液后,细胞用1 × PBS洗涤两次,然后用荧光团染色缓冲液(由细胞维持液稀释HBC514至终浓度2μM ,使用含5% FBS的1 × PBS配制)在37℃下孵育10min。
(4)使用旋转盘显微镜拍摄细胞的显微照片。

References:

[1] YUAN D, HE H, SONG W, et al. Allosteric genetically encoded biosensor for spatiotemporal monitoring of endogenous RNA dynamics in living cells[J]. Proceedings of the National Academy of Sciences, 2025, 122(7): e2409309122.

产品文档 Product Documents

Purity:>98.00%

化学性质Chemical Properties

CAS 号
2530161-67-0

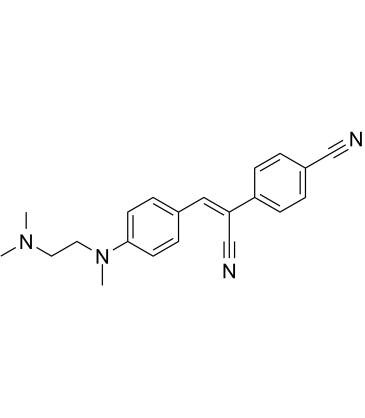

SMILES
CN(CCN(C)C)C(C=C1)=CC=C1/C=C(C#N)/C2=CC=C(C#N)C=C2
分子式
C21H22N4
分子量
330.43 g/mol
溶解性
DMSO: 25 mg/mL (75.66 mM)
保存条件
Store at -20°C
General tips
请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液;一旦配成溶液,请分装保存,避免反复冻融造成的产品失效。
储备液的保存方式和期限:-80°C 储存时,请在 6 个月内使用,-20°C 储存时,请在 1 个月内使用。
为了提高溶解度,请将管子加热至 37°C,然后在超声波浴中震荡一段时间。
Shipping Condition
评估样品解决方案:配备蓝冰进行发货。所有其他可用尺寸:配备 RT,或根据请求配备蓝冰。

计算工具摩尔浓度 / 稀释 / 分子量 / 单位换算 / 体内配方 / 溶解度

g/mol
