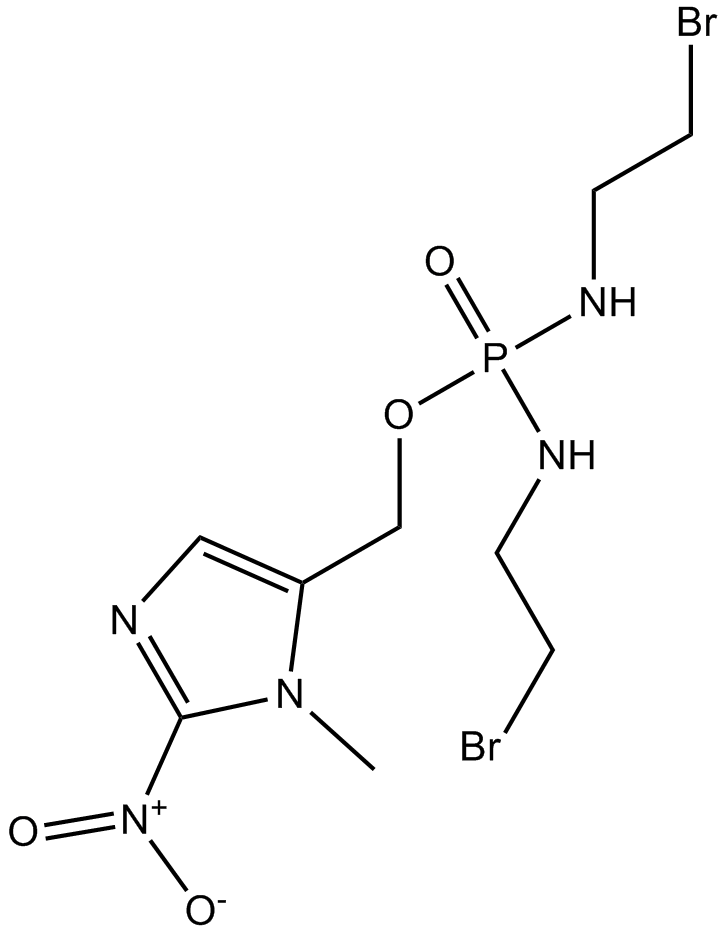

TH-302

Cell experiment:

Cells are treated with 0.1 μM of either PF477736 or AZD7762 and Evofosfamide (TH-302) for 2 h under either normoxia (21% O2) or hypoxia (N2). Following wash, cells are cultured for additional 22 h in the presence of Chk1 inhibitor under normoxia. Cells are fixed in 75% ethanol and cell cycle distribution is determined using cell cycle reagent and Guava flow cytometry. HT-29 cells are exposed to Evofosfamide (TH-302)e (8 nM, 40 nM, 200 nM, 1 μM, and 5 μM) and 0.1 μM of AZD7762 for 2 h under either normoxia (21% O2) or hypoxia (N2). After wash, cells are continuously cultured for additional 46 h in the presence of 0.1 μM of AZD7762. Luminescence-based caspase activity assay is performed[1].

Animal experiment:

Mice[2] Female SCID mice of age 5-6 weeks are inoculated with SU.86.86, Hs766t or Mia-PaCa2 cells (5×106) subcutaneously on the left hind leg. Tumors are allowed to grow for an average of three weeks to an average size of ~150 mm3. Mice are then randomized and placed into cohorts and treated with saline (control) or Evofosfamide (TH-302) (50 mg/kg) injected intraperitoneally. A total of 34 mice underwent MR imaging studies. The SU.86.86 group consist of 5 TH-302 treated and 5 control animals; Mia-PaCa2 consist of 6 Evofosfamide treated and 5 control animals; Hs766t consist of 7 Evofosfamide treated and 6 control animals. Animals are sacrificed when tumors reach 2000 mm3. Rats[2] Syngeneic rhabdomyosarcoma R1 tumors (1 mm3) are implanted subcutaneously in the lateral flank of adult WAG/Rij rats. Experiments are started upon a mean tumor volume of 4.2 cm3(range, 2.0-8.1) to ensure a stable HF. Treatment is administered on 4 consecutive days and consist of an intraperitoneal injection (i.p.; QD×4) with either NaCl or Evofosfamide (TH-302) (25, 50, or 75 mg/kg). Before the start of treatment, a PET scan is made using [18F]HX4. Radiotherapy is applied in a single dose of 0, 4, 8, or 12 Gy on day 3 of the treatment, 3 hours after NaCl or Evofosfamide (TH-302) injection, 1 hour after oxygen modification. During both PET imaging and radiotherapy, rats are anesthetized using a mixture of ketamine/xylazine (i.p; 66.7 and 6.7 mg/kg, respectively). During the 5 days of treatment (1 day PET imaging, 4 days of injections with Evofosfamide or vehicle), animals are exposed to modified oxygen concentrations for 4 hours per day in order to alter the HF of the tumor. The combination oxygen modification of nicotinamide (i.p. 500 mg/kg) and carbogen (95% oxygen, 5% CO2; 5 L/minute) consist of a nicotinamide injection and 30 minutes later the exposure to carbogen breathing for 3.5 hours. In the middle of the nicotinamide/carbogen treatment, NaCl/Evofosfamide is administered. Reduced oxygen breathing (7%, residual N2; 2.5 L/minute) is given for 4 hours with the NaCl/Evofosfamide injection after the first 2 hours. The injection of the [18F]HX4 PET tracer [mean 18.8 MBq, range 7.1-25.1 MBq; lateral tail vein using an intravenous line (Venoflux 0.4 mm G27) flushed with 10% heparine)] is given 2 hours before the end of the oxygen modification. PET imaging is performed 3 hours after tracer injection.

References:

[1]. Meng F, et al. Enhancement of hypoxia-activated prodrug TH-302 anti-tumor activity by Chk1 inhibition. BMC Cancer. 2015 May 21;15:422.
[2]. Zhang X, et al. MR Imaging Biomarkers to Monitor Early Response to Hypoxia-Activated Prodrug TH-302 in Pancreatic Cancer Xenografts. PLoS One. 2016 May 26;11(5):e0155289.
[3]. Peeters SG, et al. TH-302 in Combination with Radiotherapy Enhances the Therapeutic Outcome and Is Associated with Pretreatment [18F]HX4 Hypoxia PET Imaging. Clin Cancer Res. 2015 Jul 1;21(13):2984-92.
