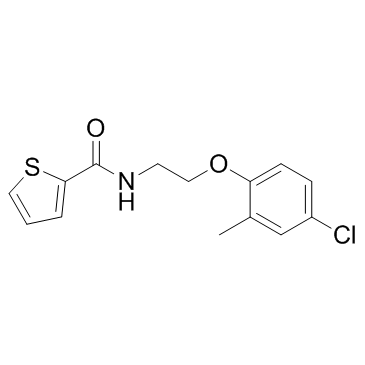

ML402

Kinase experiment:

K2P2.1cryst ML335 and ML402 complex crystals grow in the same conditions as K2P2.1cryst, but the protein is incubated for at least 1 h with 2.5 mM of activator (including ML 402) before setting the crystal plates. ML335 and ML402 are insoluble in aqueous solutions, so they are dissolved in 100% DMSO at a concentration of 500 mM. Then each compound is diluted 1:100 in SEC buffer to 5 mM concentration, giving a milky solution. This solution is mixed 1:1 to K2P2.1cryst previously concentrating to 12 mg/mL. The K2P2.1cryst ML402 mixture results in a clear solution, while the mixture with ML335 is slightly milky. The samples are briefly centrifuged in a table-top centrifuge (10,000×g) to remove any insoluble material before setting the crystal plates. Dose-response experiments are carried by first preparing a DMSO stock solution of each activator (including ML402) at a concentration of 100 mM. Owing to the low solubility of the compounds the highest test concentrations in recording solution are 100 μM and 80 μM for ML335 and ML402, respectively. Other concentrations are prepared by serial dilutions of the 100 μM solution in recording buffer supplementing with 0.1% DMSO[1].

References:

[1]. Lolicato M, et al. K2P2.1 (TREK-1)-activator complexes reveal a cryptic selectivity filter binding site. Nature. 2017 Jul 20;547(7663):364-368.
