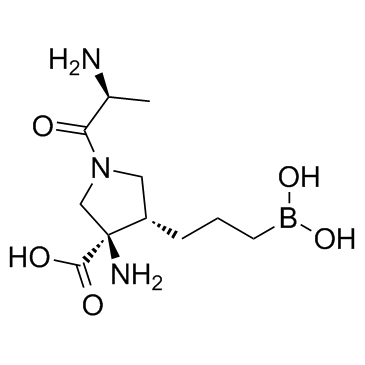

CB-1158 (INCB01158)

Cell experiment:

Intracellular arginase activity is determined for the arginase-expressing HepG2 and K-562 cell lines as follows. HepG2 cells are seeded at 100,000 cells per well one day prior to treatment with CB-1158. K-562 cells are seeded at 200,000 cells per well on the day of CB-1158 treatment. Cells are treated with a dose-titration of CB-1158 in SILAC RPMI-1640 media containing 5% heat-inactivated and dialyzed FBS, antibiotics/anti-mycotic, 10 mM L-arginine, 0.27 mM L-lysine, and 2 mM L-glutamine. The medium is harvested after 24 h and urea generated is determined. Wells containing media without cells are used as background controls. For assessing the effect of CB-1158 on Arg1 in primary hepatocytes, frozen human hepatocytes are thawed, allowed to adhere onto collagen-coated wells for 4 h, and then incubated for 48 h in SILAC-RPMI containing 10 mM L-ornithine, no L-arginine, and a dose-titration of CB-1158, at which time the media are analyzed for urea[1].

Animal experiment:

Mice[1]For the 4T1 tumor model, 105 cells are injected orthotopically into the mammary fat pad; for all other tumor models, 106 cells are injected subcutaneously (s.c.) in the right flank. For all studies, CB-1158 is administered by oral gavage twice per day at 100 mg/kg starting on study day 1 (1 day after tumor implant). Control groups receive vehicle (water) twice daily by gavage. Tumor volume measured by digital caliper (length × width × width/2) and body weight are recorded three times per week. Mice are euthanized when tumors necrotize or volumes reach 2000 mm3. For the CT26 model, anti-PD-L1 antibody (5 mg/kg) is injected intraperitoneally (i.p.) on days 5, 7, 9, 11, 13, and 15. For the 4T1 model, anti-CTLA-4 antibody (5 mg/kg) is injected i.p. on days 2, 5, and 8; anti-PD-1 antibody (5 mg/kg) is injected i.p. on days 3, 6, and 9. 4T1 tumors are harvested on study day 25 into Fekete’s solution and tumor nodules are enumerated visually. Gemcitabine is dosed 50 mg/kg i.p. on days 10 and 16 for the CT26 model, 60 mg/kg i.p. on days 6 and 10 for the LLC model, or 30 mg/kg i.p. on day 5 for the 4T1 model. With these regimens, gemcitabine modestly reduces tumor growth and spares most tumor-infiltrating immune cells, allowing for the evaluation of combination activity with CB-1158[1].

References:

[1]. Steggerda SM, et al. Inhibition of arginase by CB-1158 blocks myeloid cell-mediated immune suppression in the tumor microenvironment. J Immunother Cancer. 2017 Dec 19;5(1):101.
